With the development of intelligent devices, the demand for various portable electronic devices emerges, which requires more miniaturization and more stable performance of components. In particular, as an important component of product power management application, inductance requires miniaturization on the premise of ensuring performance in the component design of intelligent equipment. After learning the market application demand, Xiangru Electronics developed a miniaturized integrated inductor XRTC252010S2R2MBCA suitable for small-size applications requiring large current, with an inductance value of 2.2μH, a size of only 2.5mm×2.0mm×1.0mm, and a typical rated current of up to 2.4A, which can meet the application demand of miniaturized power supply for various intelligent devices.
Product features
High current and low loss
High performance (Isat) is achieved by metal dust core, and the typical value of high saturation current is 3.3A
Low DC resistance (the maximum value is only 70mΩ) to achieve low loss.
Adopt closed magnetic circuit design to realize low leakage flux.
Vinyl thermal spraying technology makes the surface more dense.
Meet the requirements of QESP-44
100% lead-free (Pb), in line with RoHS2.0 and halogen, REACH and other standards.
Application scenario
DCDC converter
Tablet, smartphone
Portable game equipment, smart wear, Wi-Fi module
Notebooks, Virtual Reality (VR), Augmented Reality (AR)
Liquid crystal display, hard disk drive (HDD), digital camera (DVC), digital camera (DSC)
Baseband power supply, amplifier, power management, module power supply, camera power management.

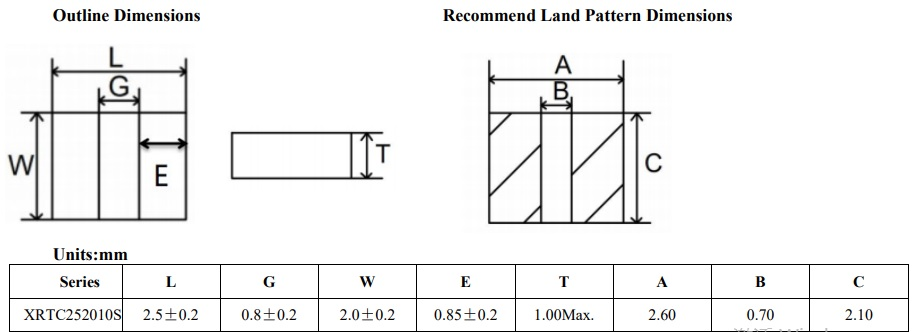

Appearance size
Figure 1 Product appearance

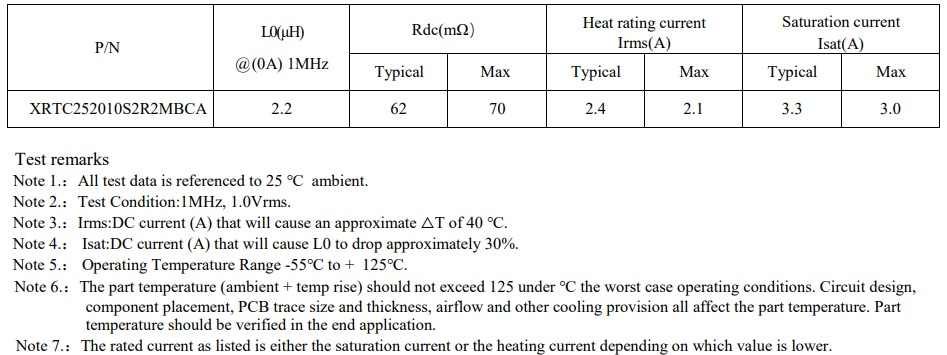

electrical specification
Figure 2 Product characteristics
Innovative technology
Adopt integrated molding process to improve electromagnetic characteristics.

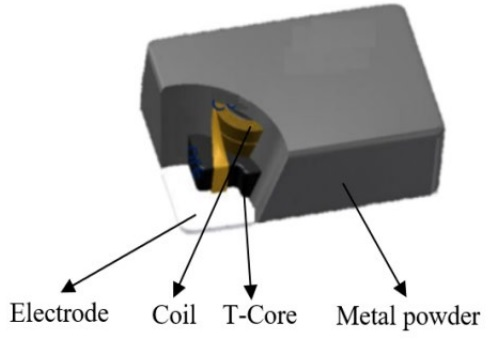

As shown in the structural diagram of Figure 3, XRTC252010S2R2MBCA adopts an integral molding process, and the external part is molded by metal powder, and the internal coil, electrode and T-core are encapsulated to form a stable electromagnetic structure, which reduces the magnetic leakage of the product and has more stable characteristics.
Figure 3 Product structure of XRTC 252010S2R2MBCA
Strong current capacity and stable inductance characteristics.

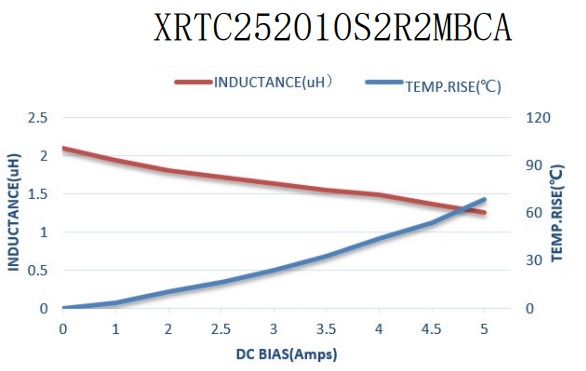

As can be seen from Figure 4, XRTC252010S2R2MBCA maintains stable inductance characteristics, with a typical rated current of 2.4A, but the inductance value will be attenuated with the increase of current, so it is recommended to use it at a typical rated current. At the same time, under the condition of rated typical current, the temperature rise will not exceed 30℃, and the temperature will rise sharply under the condition of overcurrent, so it is necessary to pay special attention to the design and refer to the information in Figure 4.
Strong product reliability
XRTC252010S2R2MBCA of Xiangru Electronics is worthy of users' trust in reliability. Its insulation resistance is ≥100MΩ, and more than 90% of the electrode area is available for welding, which can form a firm connection with PCB. At the same time, the product passed the temperature test and impact test at -55℃~125℃, and there was no trace of deformation or damage on the surface. In addition, Xiangru Electronics also carried out humidity and life tests, and the inductance value changed within 10%. Through strict test data, the product has the ability of domestic independent replacement in the smart product industry, which is worthy of users' trust.
Naming rules for product models

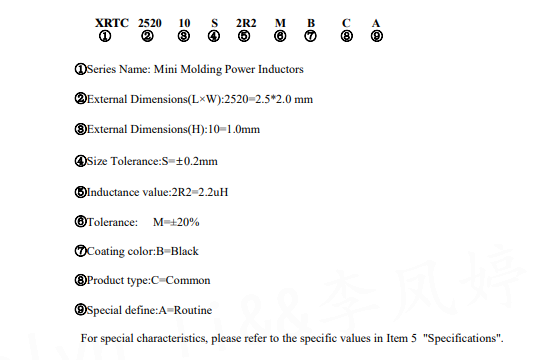

The naming rules of this model product series are shown in the figure. XRTC252010S2R2MBCA model indicates: miniaturized integrated inductor, length and width 2.5*2.0mm, height 1.0mm, structural dimension tolerance ±0.2mm, inductance 2.2μH, inductance tolerance 20%, general-purpose conventional inductor. If the technical parameters of this inductor are not applicable, you can contact to apply for samples according to the series naming rules.
