Xiangru electronic patch CD unshielded inductance xrcd43-102k: 1mh inductance, and the size is only 3.5*4mm.

Browse：175 Times Date：2024-10-15

Link to Resources: https://www.xiangrudz.com/up_pic/XRCD43-102K.pdf

outline

With the development of electronic products to miniaturization and thinness, the requirements for internal components are getting higher and higher. In order to realize miniaturization, high working frequency, cost-effectiveness and good heat dissipation performance, Xiangru Electronics has introduced the patch CD unshielded inductor XRCD43-102K, which has excellent inductance performance, compact size and reliable manufacturing process, and meets the requirements of modern electronic equipment for miniaturization, high efficiency and stable performance. 1mH inductance, with a size of only 3.5*4mm, is widely used in general electronic equipment such as AV equipment, OA equipment, household appliances and information services.

Product features

Unshielded inductance design ensures stable inductance characteristics in various environments.

The key parameters such as inductance (1mh 10%) and DC resistance (DCR)(9.2Ω max) are highly consistent.

Miniaturization design is convenient to realize efficient layout of electronic components.

Chip design, easy automatic assembly, improve production efficiency.

app; application

AV equipment: audio equipment, TV sets, monitors, etc.

OA equipment: printers, copiers, fax machines, etc.

Household appliances: washing machines, air conditioners, refrigerators, etc.

Information equipment: computers, mobile phones, routers, etc.

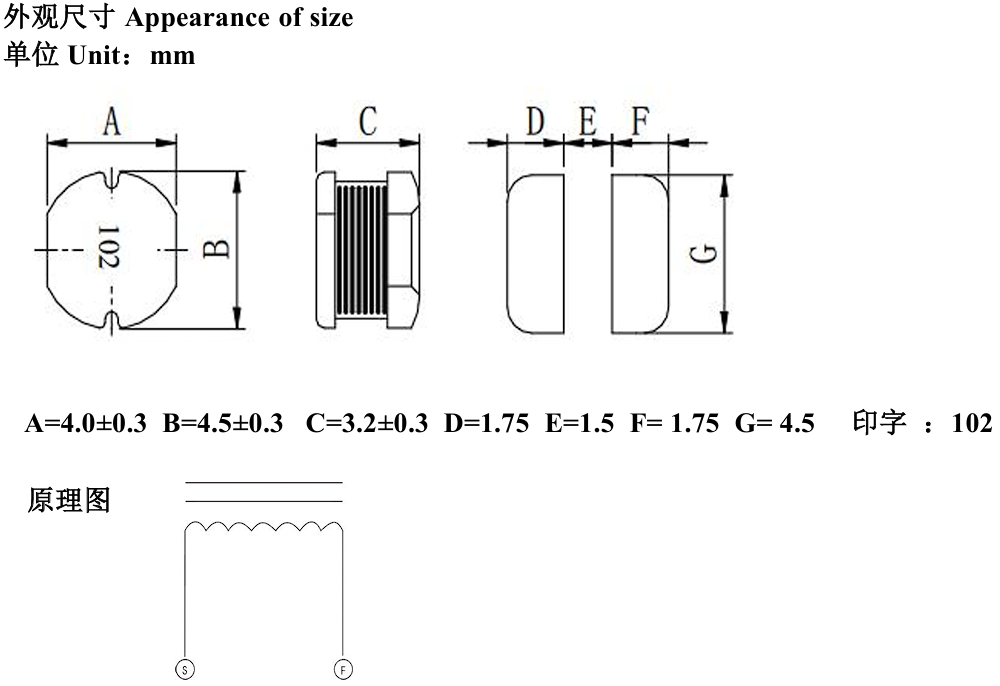

Appearance and size

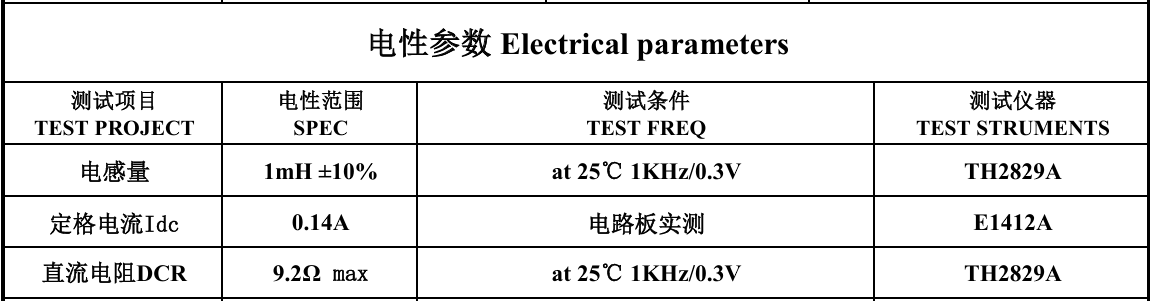

Electrical parameters

Product advantage

1. Miniaturization design

Accurate appearance size, suitable for patch installation, saving space, and suitable for the miniaturization trend of modern electronic equipment.

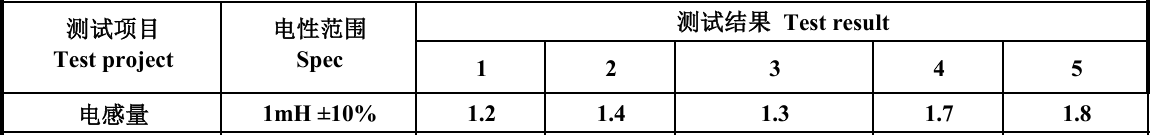

2. Accurate inductance value

The inductance is 1mH, and the tolerance is controlled within 10%, which ensures the consistency and reliability of the product and is very important for circuit applications that need accurate inductance.

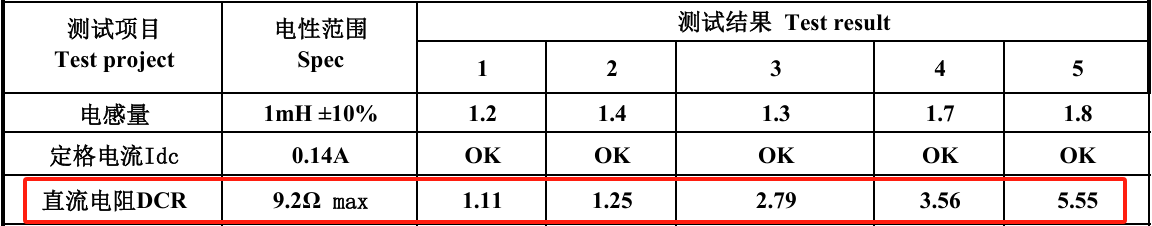

3. Low DC resistance

The maximum DC resistance DCR is 9.2Ω(at 25℃, 1KHz/0.3V). Lower DC resistance is helpful to reduce power loss and improve circuit efficiency.

4. Perfect technical support

produce

Mass production
